Laser Vision Welding Seam Tracking Sensor for Special Welding Machine

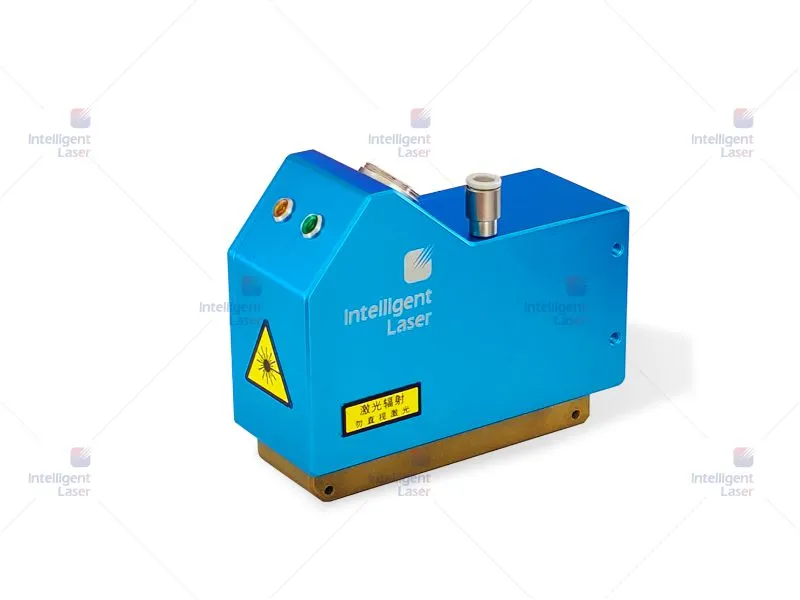

IL-SPD180 Laser Vision Welding Seam Tracking and Finding Sensor

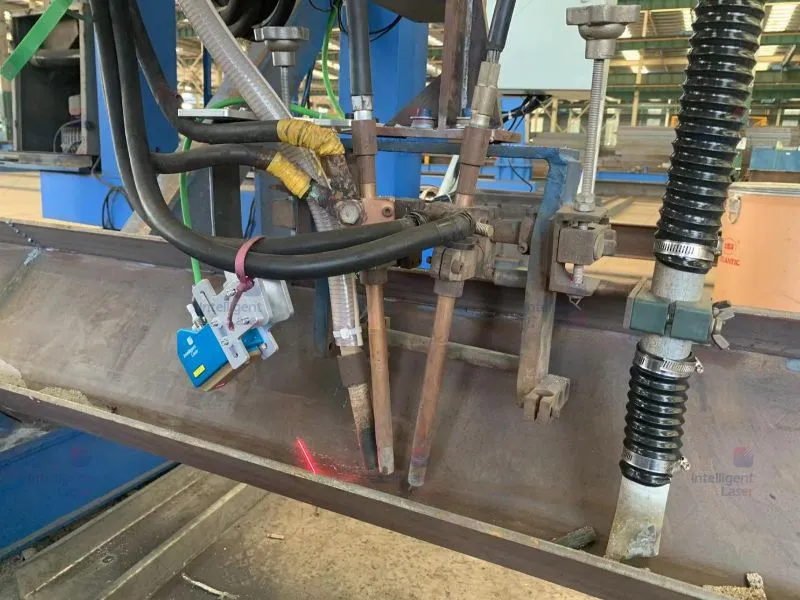

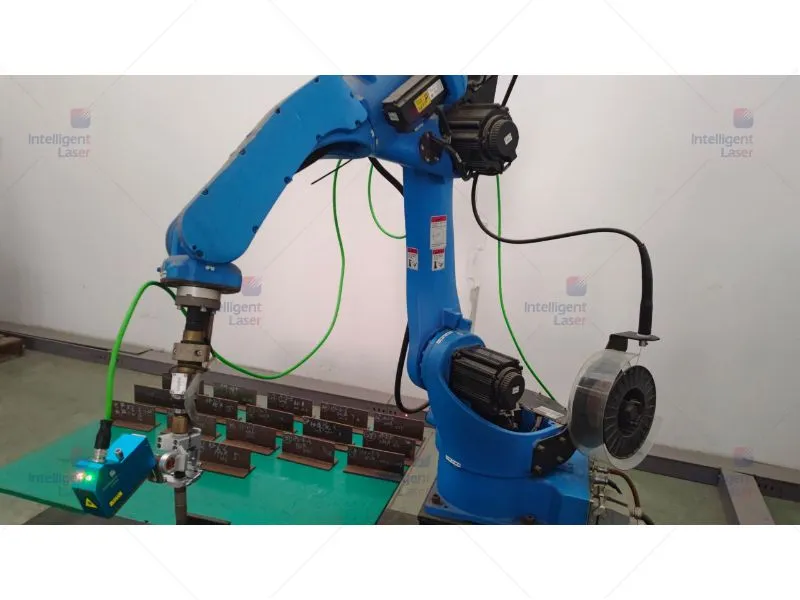

With the viewing distance range of 133~263mm, optimum viewing distance of 178mm and minimum detection gap of 0.6mm, the IL-SPD180 Laser Vision Welding Seam Tracking and Finding Sensor is specifically developed for the special-purpose welding machines. The product also features compact in size, fast speed and supporting 60 @ Full-View up to 120fps, and is capable of providing important visual support for automated welding of special-purpose machines.

Featuresof IL-SPD180 Seam Tracking & Seam Finding Sensor

1. Single cable performing two functions: power supply and digital communication.

2. More efficient configuration due to the adoption of embedded design

3. Seamless integration with more than 10 types of PLC brands and motion controllers.

4. Compact in size, less interference

5. Customized non-standard sensor structures are available.

Let Us Provide a Professional Solution for You Today

Our experienced team can provide customized service to all kinds of projects. Also, we provide 24/7 aftersale service.

Our aim is to make sure all customer can use the laser sensor after receiving it instead of put it in the box.
