Sheet Metal Seam Tracking & Seam Finding Sensor

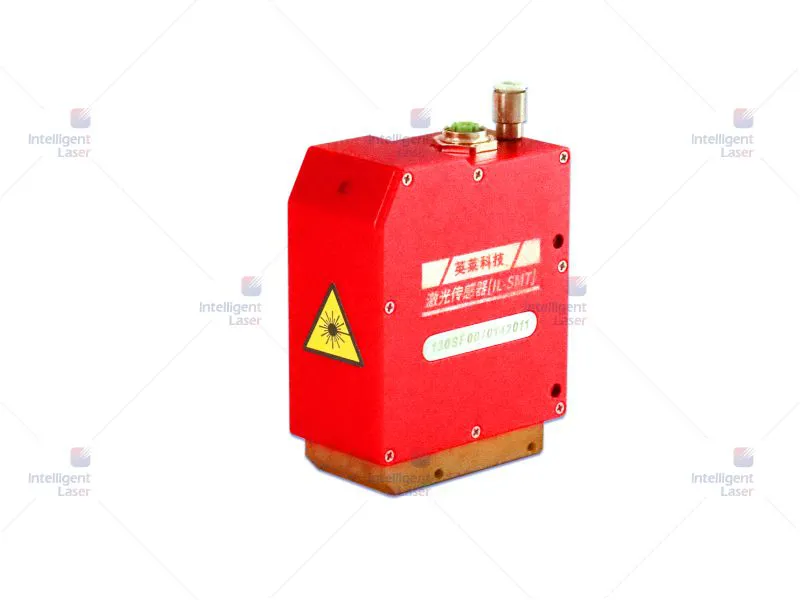

IL-SMT130 Laser Vision Welding Seam Tracking & Finding Sensor

IL-SMT130 Laser Vision Welding Seam Tracking & Finding Sensor adopts a new generation of optical structure design, and comes with 30% size smaller than the previous one. Its features include viewing distance range of 91mm~208mm, optimum viewing distance of 127.5 mm, single cable performing two functions of power supply and digital communication, less interference, formidable image acquisition system and capability of detecting joint gap as small as 0.2mm, enabling important visual support for metal sheet welding.

Features of IL-SMT130 Laser Vision Welding Seam Tracking & Finding Sensor

1. Single cable performing two functions: power supply and digital communication.

2. High detection accuracy, capable of detecting welding gap as small as 0.2mm.

3. Reliable internal structure design makes it work efficiently in various complex and harsh industrial environments.

4. Compact in size, less interference

5. Customized non-standard sensor structures are available.

Let Us Provide a Professional Solution for You Today

Our experienced team can provide customized service to all kinds of projects. Also, we provide 24/7 aftersale service.

Our aim is to make sure all customer can use the laser sensor after receiving it instead of put it in the box.
